Ultra low temperature freezer

It mainly consists of refrigeration system, circulation system, control system, box, etc. The refrigeration system adopts steam compression refrigeration, and the compressor and main refrigeration components are all from internationally renowned brands. Ensure the safe operation of the equipment for external applications that require rapid cooling.

The electric heating assisted temperature control type can achieve a temperature control accuracy of ± 0.1 ℃.
Temperature range:
-60 ℃~room temperature
-80 ℃~room temperature
-115 ℃~room temperature

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Name

model
Refrigeration and heating methods
temperature range
Main applications
Temperature control mode
Control system
heating power
Expansion valve
Solenoid valve
evaporator
Refrigeration capacity (-20 ℃)
Circulating pump flow rate
Circulating pump pressure
communication protocol
External input
Distribution power
Cooling form
Shell material
Optional connecting pipeline
Equipment advantages
Expansion and upgrading

Parameter Function Description

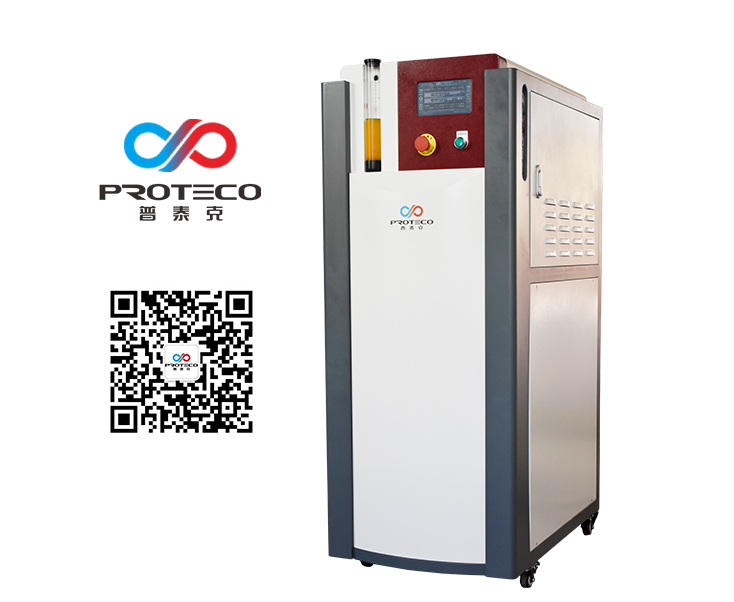

PTLD series ultra-low temperature freezer
Refrigeration: steam compression refrigeration, heating: electric heating
-150 ℃~room temperature (can expand its temperature range to 100 ℃) (no-load)
This product is suitable for external applications that require rapid cooling, and industries such as chemical, biological, pharmaceutical, freeze-drying, food, and military industries that maintain low temperature conditions.
Control the temperature of the circulating medium
7-inch color touch screen, temperature curve display and recording
2.5kw~50kw
Danfoss/Emerson Thermal Expansion Valve
Castor/Emerson/Danfoss solenoid valve
Danfoss/Gaoli/Baode Plate Heat Exchanger
1.5kw~55kw
15L/min~400L/min
1bar~2.5bar
MODBUS RTU protocol RS 485 interface
External temperature sensor port, USB data interface
1.5kW ~78kW
Air cooled or water-cooled (suffix "W" for water-cooled models)
Electrostatic spray galvanized sheet/stainless steel 304
Metal insulation pipe or fluorine rubber pipe or silicon rubber pipe
1. Fully enclosed system: does not produce oil mist at high temperatures and does not absorb air moisture at low temperatures; 2. Safety protection function: With self diagnostic function; Multiple alarm protection functions
1. One to many: A single device can output multiple outputs, with multiple loads, and each path is independently controlled for temperature, saving space; 2. Customized explosion-proof: can be upgraded to positive pressure explosion-proof or explosion-proof explosion-proof

Product recommendations

Non standard customization

The DLS series low-temperature chiller is mainly composed of refrigeration system, circulation system, control system, box, etc. The refrigeration system adopts steam compression refrigeration, and the compressor and main refrigeration components are all from internationally renowned brands, with stable and excellent performance at the outlet water temperature. The temperature control accuracy can reach ± 0.1 ℃, and optional components can achieve multi-channel output and load, which is energy-saving and environmentally friendly, and easy to operate. And it can achieve multiple alarm functions such as overheating, overload, and water shortage, making remote control convenient. It can control various communication methods such as I/O, RS232, RS485, etc

Low temperature chiller

-135 ℃~+225 ℃, can meet the needs of different temperatures, and can be customized non-standard; Optional precise temperature control form, with a maximum temperature control accuracy of ± 0.1 ℃; Using an efficient heat exchanger, the cooling speed is fast, and it only takes 5 minutes to reach -80 ℃ at room temperature; Optional cooling capacity recovery device to improve energy efficiency and avoid low-temperature condensation water. Optional intake flow automatic control and detection

Low temperature air conditioner

The direct cooling refrigeration machine adopts refrigerant direct evaporation, and the cooling method is phase change refrigeration. Compared with the temperature difference cooling of liquid cooling, the cooling speed is faster, the energy efficiency is higher, the equipment has no circulation system, and the external dimensions are more compact!

Direct cooling refrigeration machine
