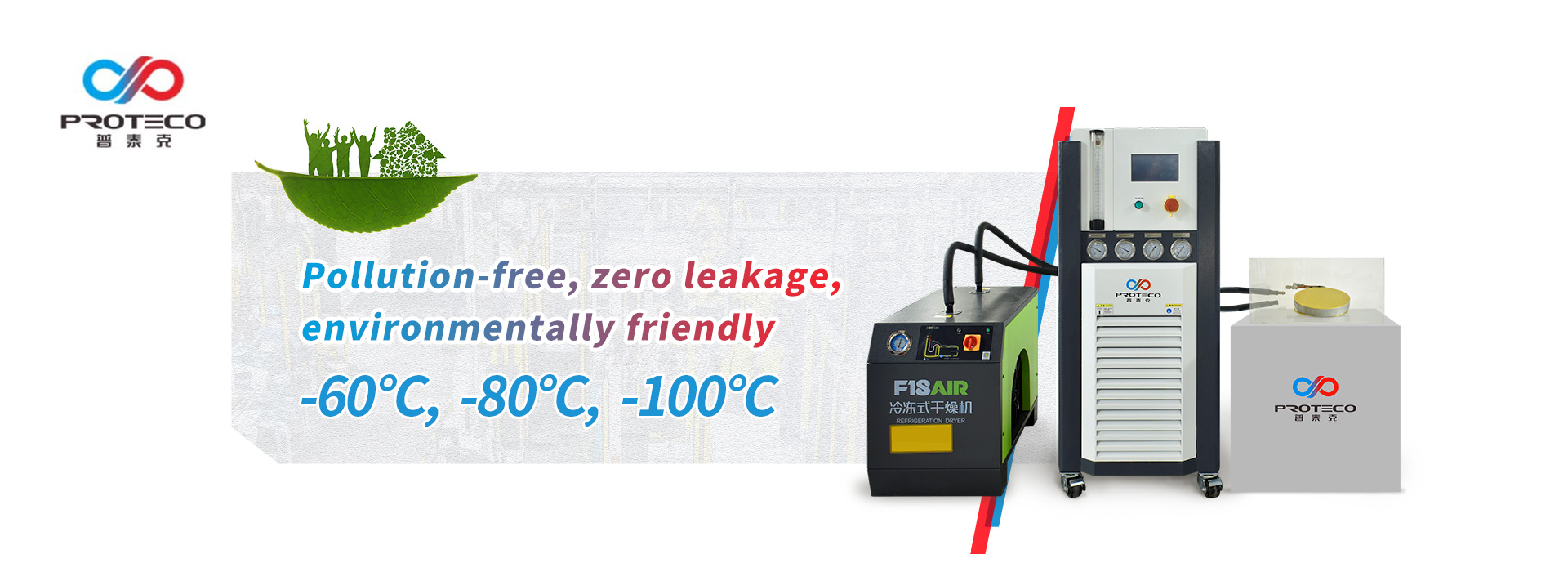

Low temperature air conditioner

-135 ℃~+225 ℃, can meet the needs of different temperatures, and can be customized non-standard; Optional precise temperature control form, with a maximum temperature control accuracy of ± 0.1 ℃; Using an efficient heat exchanger, the cooling speed is fast, and it only takes 5 minutes to reach -80 ℃ at room temperature; Optional cooling capacity recovery device to improve energy efficiency and avoid low-temperature condensation water. Optional intake flow automatic control and detection

-20 ℃~100 ℃ (precise temperature control)
-40 ℃~100 ℃ (precise temperature control)
-80 ℃~100 ℃ (precise temperature control)
-100 ℃~100 ℃ (precise temperature control)

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Name

  • Device Name
  • Equipment model
  • Equipment dimensions
  • Refrigeration method
  • compressor
  • Evaporator
  • Intermediate heat exchanger
  • Condenser
  • Condensing fan
  • cryogen
  • Temperature sensor
  • Gas flow meter
  • Flow regulating valve
  • Electrical components
  • Resistance wire heater
  • controller
  • Equipment voltage
  • Distribution power

Parameter Function Description

  • Gas refrigeration machine
  • PTLQ-F05-30T
  • 650 * 550 * 1300mm (size adjustable)
  • Double compressor cascade air cooling
  • French Taikang fully enclosed piston compressor (1.5 horsepower * 2)
  • High power plate heat exchanger
  • High power plate heat exchanger
  • Danfoss/Emerson/Castor
  • Hydrophilic aluminum finned air-cooled heat exchanger
  • Low light high-efficiency axial flow fan
  • R404A/R508B
  • German Weika A-grade platinum resistor
  • SMC
  • Danfoss
  • Schneider
  • Putek customization
  • Putek customization
  • AC 220V/1/50Hz
  • 3.3kW

Product recommendations

It mainly consists of refrigeration system, circulation system, control system, box, etc. The refrigeration system adopts steam compression refrigeration, and the compressor and main refrigeration components are all from internationally renowned brands. Ensure the safe operation of the equipment for external applications that require rapid cooling.

Ultra low temperature freezer
More

The DLS series low-temperature chiller is mainly composed of refrigeration system, circulation system, control system, box, etc. The refrigeration system adopts steam compression refrigeration, and the compressor and main refrigeration components are all from internationally renowned brands, with stable and excellent performance at the outlet water temperature. The temperature control accuracy can reach ± 0.1 ℃, and optional components can achieve multi-channel output and load, which is energy-saving and environmentally friendly, and easy to operate. And it can achieve multiple alarm functions such as overheating, overload, and water shortage, making remote control convenient. It can control various communication methods such as I/O, RS232, RS485, etc

Low temperature chiller
More

-135 ℃~+225 ℃, can meet the needs of different temperatures, and can be customized non-standard; Optional precise temperature control form, with a maximum temperature control accuracy of ± 0.1 ℃; Using an efficient heat exchanger, the cooling speed is fast, and it only takes 5 minutes to reach -80 ℃ at room temperature; Optional cooling capacity recovery device to improve energy efficiency and avoid low-temperature condensation water. Optional intake flow automatic control and detection

Low temperature air conditioner
More

The direct cooling refrigeration machine adopts refrigerant direct evaporation, and the cooling method is phase change refrigeration. Compared with the temperature difference cooling of liquid cooling, the cooling speed is faster, the energy efficiency is higher, the equipment has no circulation system, and the external dimensions are more compact!

Direct cooling refrigeration machine
More
