High and Low Temperature Closed Dynamic Temperature Control System

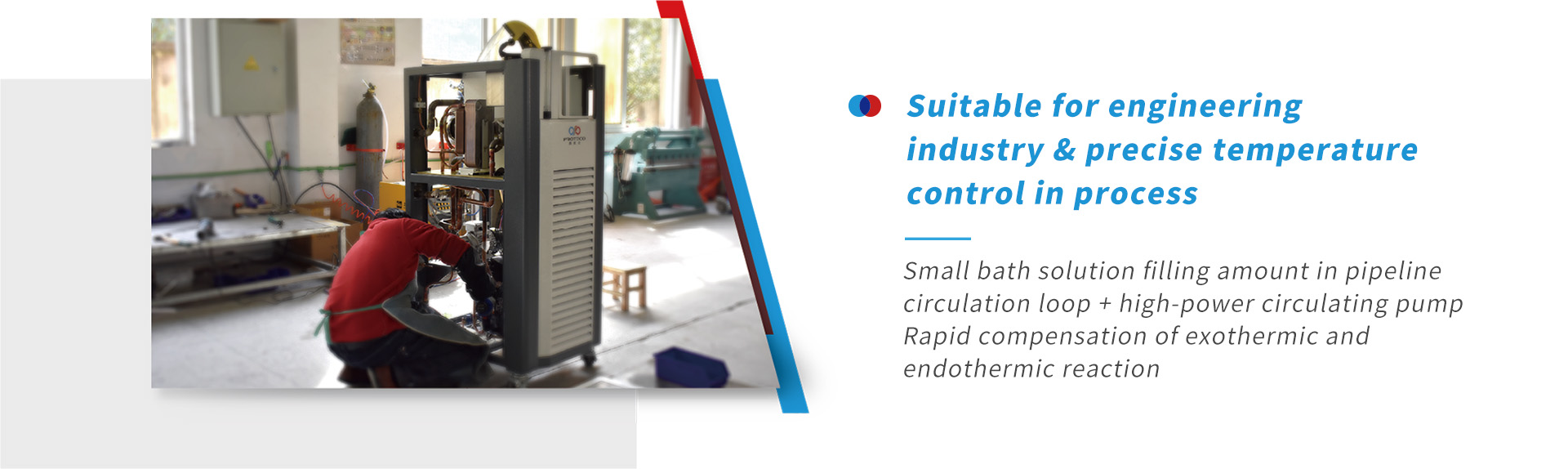

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Temperature control accuracy: ± 0.5 ℃
Temperature control object: material temperature or outlet temperature
Heating and cooling power: 2.5kw 50kw

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Model

  • Refrigeration and heating methods
  • temperature range
  • Flow control range
  • Pressure control range
  • Main applications
  • major function
  • Temperature control mode
  • Control system
  • compressor
  • Expansion valve
  • Solenoid valve
  • evaporator
  • communication protocol
  • External input
  • Distribution power
  • Cooling form
  • Shell material
  • Optional connecting pipeline
  • Equipment advantages
  • Equipment advantages
  • Expansion and upgrading
  • Expansion and upgrading

High and Low Temperature Closed Dynamic Temperature Control System

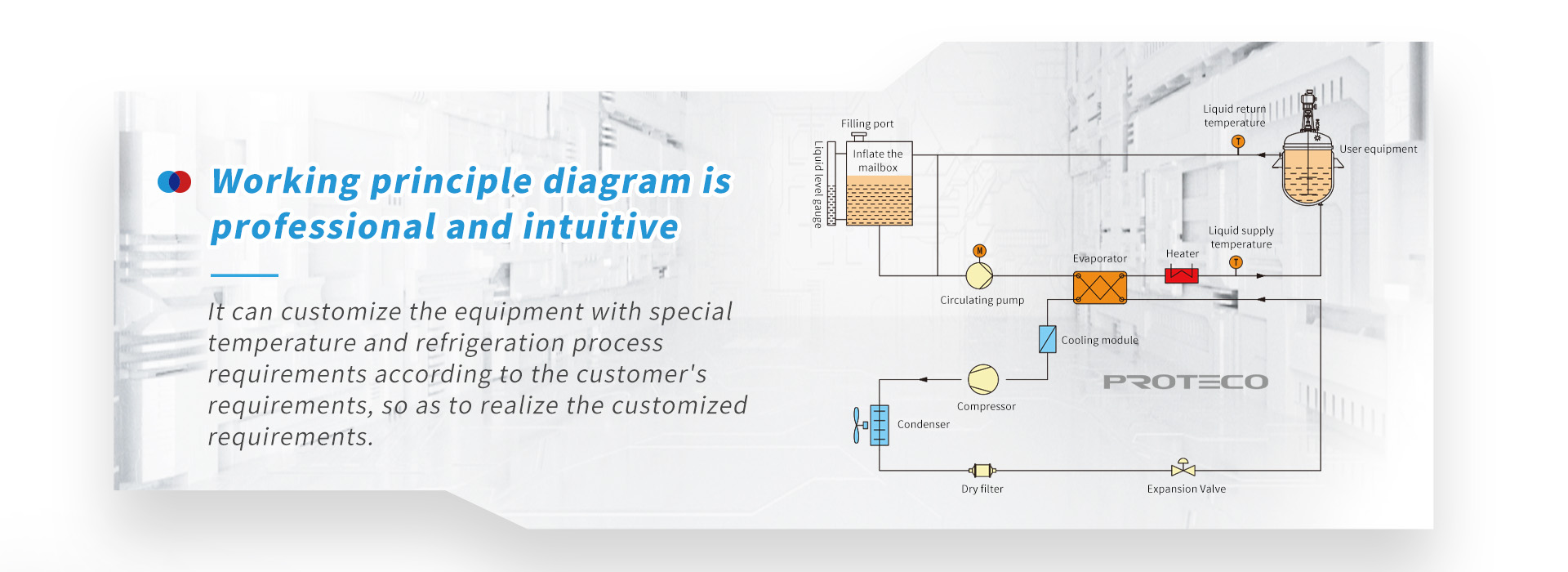

  • Refrigeration: steam compression refrigeration, heating: electric heating
  • -40 ° C~100 ° C (customizable according to requirements) (unloaded)
  • 2L/min~150L/min
  • 0~6bar
  • Applicable to new energy vehicle power battery charging and discharging testing, thermal performance testing, drive motor thermal performance testing, reliability testing, etc
  • Equipped with pressure, temperature, and flow sensors, it can achieve functions such as temperature control, pressure control, and flow control.
  • Control equipment outlet temperature

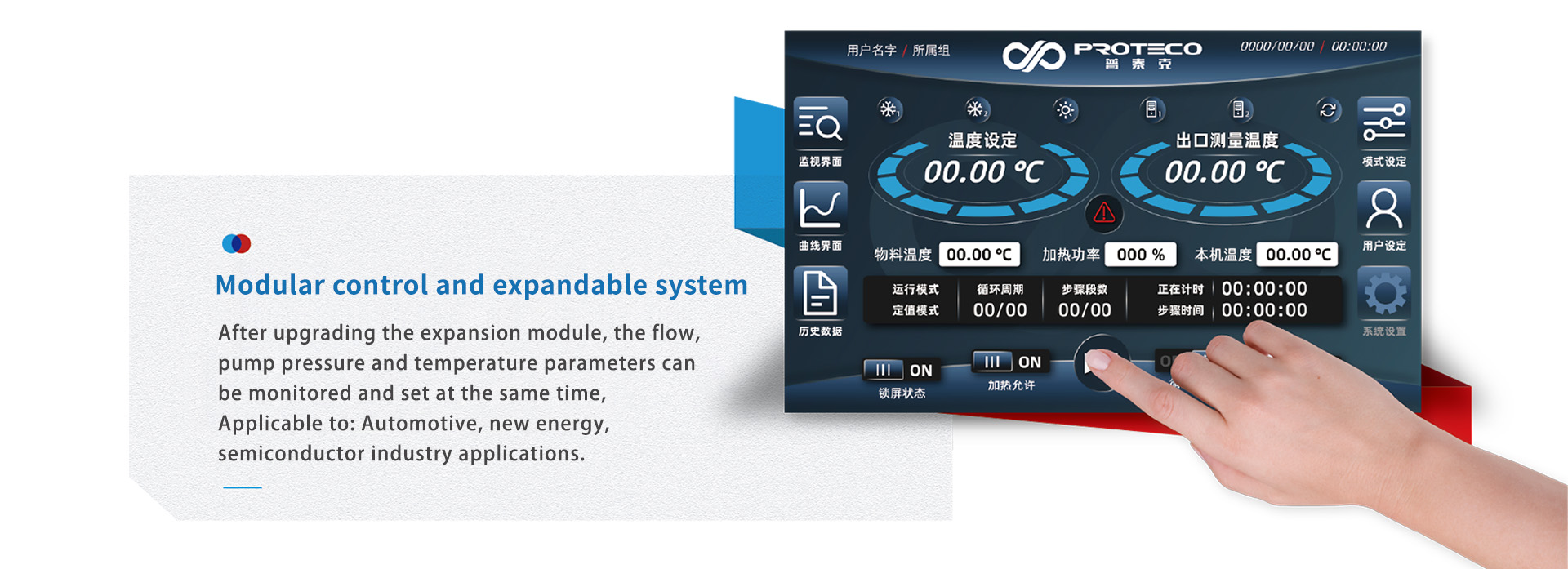

  • 7-inch color touch screen, temperature curve display and recording

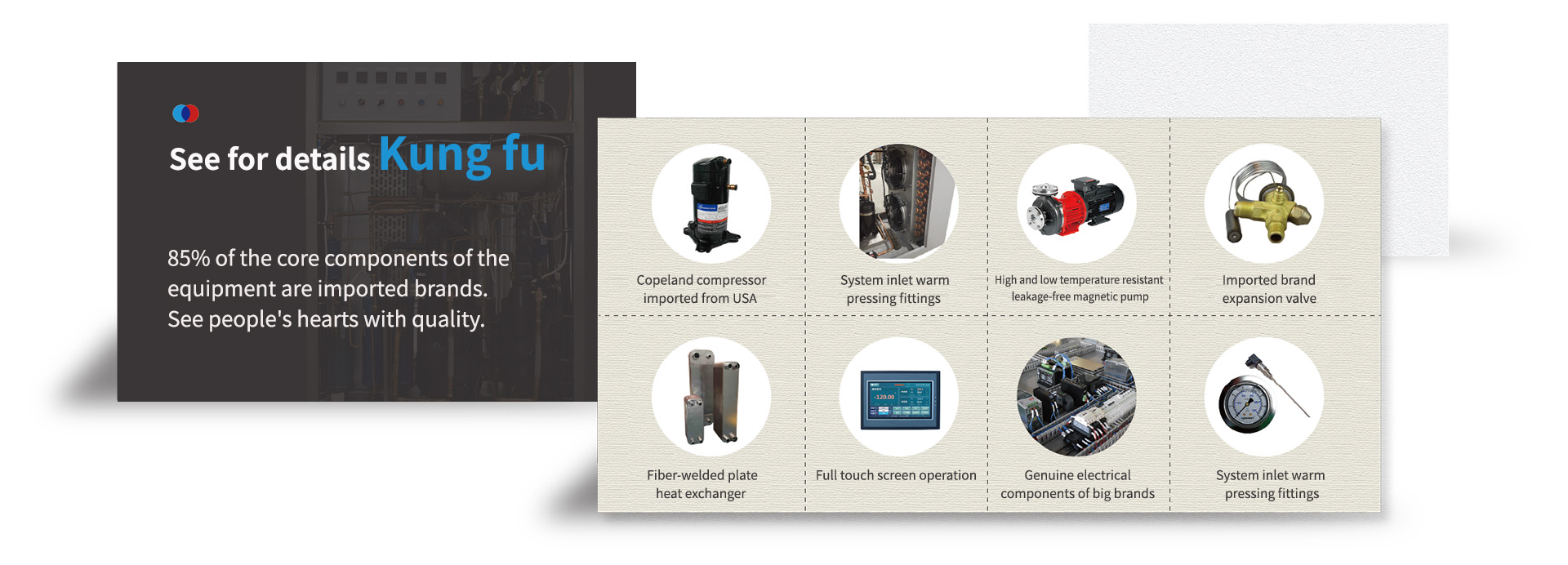

  • Taikang fully enclosed piston compressor, Emerson Valley wheel scroll compressor from the United States
  • Danfoss/Emerson Thermal Expansion Valve
  • Castor/Emerson/Danfoss solenoid valve
  • Danfoss/Gaoli/Baode Plate Heat Exchanger
  • CAN communication bus
  • External temperature sensor port, USB data interface
  • 4.5kW ~80kW
  • Air cooled or water-cooled (suffix "W" for water-cooled models)
  • Electrostatic spray galvanized sheet/stainless steel 304
  • Metal insulation pipe or fluorine rubber pipe or silicon rubber pipe
  • 1. Fully enclosed system: does not produce oil mist at high temperatures and does not absorb air moisture at low temperatures. The system will not increase pressure due to high temperatures during operation, and automatically replenishes thermal conductivity medium at low temperatures.
  • 2. Safety protection function: With self diagnostic function; Multiple alarm protection: protection functions for circulating pump failure, compressor overheating, high pressure, etc
  • 1. One to many: A single device can output multiple outputs with multiple loads, each path can independently control temperature, flow, and pressure
  • 2. Customized explosion-proof: can be upgraded to positive pressure explosion-proof or explosion-proof explosion-proof
